What to do if your car's oil pan ruptures

Engine oil is the lifeblood of any car, performing essential functions without which the engine cannot operate normally. When oil is missing or contaminated, serious engine damage can occur, sometimes irreversible.

When the engine is stopped, all the oil collects in the sump, also known as the oil pan. At start-up, the oil begins to circulate under pressure in a closed system, performing several critical roles: lubricating metal components, capturing soot particles produced by fuel combustion, and actively contributing to cooling the engine assembly.

How the oil pan ruptures

Oil pan damage can occur especially when driving on unpaved roads, potholes, or hitting rocks. Repeated impacts weaken the pan’s structure over time, and a strong impact can cause it to fail. When rupture occurs, the entire oil volume leaks out quickly—about 4-6 liters can escape in minutes.

Consequence of continuing to drive without oil are devastating: Mobile metal components (pistons, rings, camshafts, and bearings) are left without lubrication and begin to rub directly against each other. Temperature rises exponentially, and in just a few minutes the engine can seize completely.

The vehicle’s warning system

Understanding the warning lights

• Red warning light indicates a critical problem that requires immediate stop
• Orange/amber light signals a problem that allows continuing for a short distance to a service

In the event of an oil pan rupture, a red warning light shaped like a can of oil dripping will appear. This is the absolute signal you must stop immediately.

Correct procedure when the oil pan ruptures

Steps to take immediately:

1. Stop the engine immediately - upon the appearance of the red warning light, pull over safely and switch off the engine
2. Do not restart the engine - any further operation without oil causes additional damage
3. Activate hazard lights and place a reflective triangle if you are on a public road

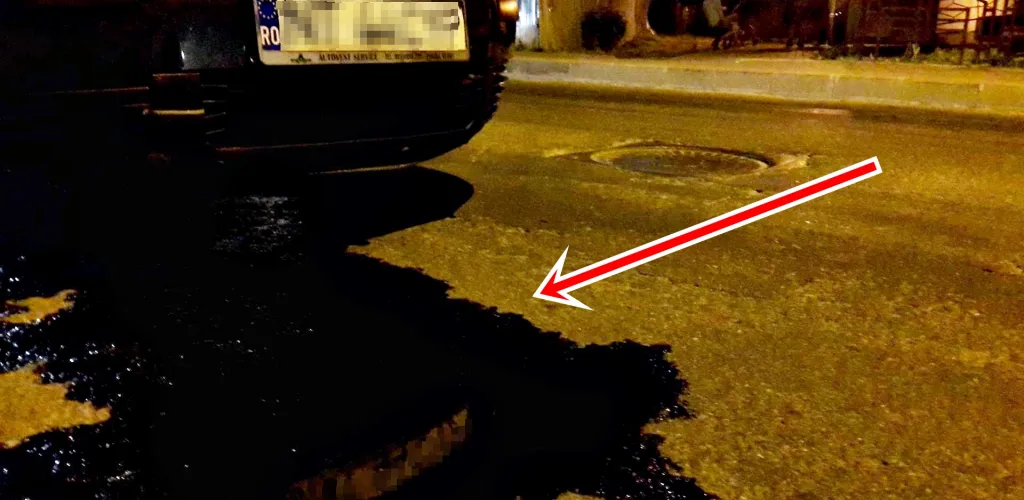

4. Visually inspect the area around the car - you will clearly notice an oil trail on the pavement
5. Do not try to fix the problem yourself - the oil can still be very hot (over 90-100°C) and under pressure, with a risk of severe burns
6. Call a tow service - the car must be transported on a tow truck to a service

What damage you can avoid by stopping immediately

Engine seizure

Mobile components seize due to lack of lubrication and extreme temperatures. Bearings, pistons, and rings can suffer irreversible damage. In the worst cases, pistons can weld themselves to the cylinders.

Extreme overheating

Without oil to dissipate heat, engine temperature climbs rapidly above 200°C. The rings can expand excessively, and the gasket seals can melt.

Also read

Engine compression: normal values for diesel and gasoline engines

Engine compression is one of the most important parameters that determine the performance and efficiency of an internal...

Fire risk

In extreme cases, overheating can ignite oil residues or other flammable fluids, causing a fire.

Repair costs

If the engine seizes completely, repair becomes economically unviable. Replacing an engine can cost:

• 3,000 - 8,000 euros for a used engine
• 8,000 - 15,000+ euros for a new or fully rebuilt engine

By comparison, fixing the oil pan and topping up the oil usually costs between 200-600 euros, depending on the car model.

Preventing the oil pan rupture

Although you cannot fully avoid the risk of hitting an obstacle, you can take precautions:

Also read

Engine oil temperature sensor: operation, faults, and diagnostics

Engine oil temperature sensor is a critical component in the electronic architecture of modern vehicles, responsible for...

• Drive carefully on rough roads and avoid deep potholes
• Regularly check the condition of the oil pan at periodic service visits
• If the car has a plastic or metal under-tray, ensure it is correctly mounted
• On older cars, check for cracks or signs of impact on the oil pan
• Avoid parking in places where you could strike the underside (high curbs, concrete blocks)

Conclusion

A rupture of the oil pan is an emergency that requires immediate reaction. Stopping the engine within seconds of the red warning appearing can make the difference between a simple repair of 300-500 euros and replacing the engine at 10,000+ euros. Never ignore red dashboard warnings and do not continue driving hoping to reach home or a service—the consequences can be devastating for your engine.
